Taifun Box Pro S

Taifun Box Pro S 18650 Box Mod

The Taifun Box Pro S is a high-end single 18650 battery mod, powered by a bespoke Dicodes BF60 chipset for unparalleled performance and user-friendliness. With a 23mm diameter top plate, it accommodates tanks and rebuildable atomisers up to 23mm, offering a sleek and versatile fit.

The Taifun Box Pro S delivers up to 80W of power and supports five operating modes: Power (Variable Wattage), Temperature Control, Boost, Pulse, and Bypass.

Its optimised Taifun-Dicodes user interface features a configuration wizard, streamlined submenus, and direct adjustments—pressing +/– buttons immediately increases/decreases power (in Power mode) or temperature (in TC mode). Other settings are accessed via fire/+ (change operation mode) or fire/– (extended functions menu), with menus exited via an “exit” item or a long timeout. A side-mounted 0.91" OLED display clearly shows all key parameters, including actual output power. Advanced safety features include internal battery resistance monitoring, reverse polarity protection, short-circuit protection, and overload warnings above 60W.

Charging is enabled via a USB-C port with Power Delivery (PD+) support, eliminating the need for external chargers.
Note that the charging cradle insert for the previous Taifun Box model is neither compatible, nor required for the Taifun Box Pro S.

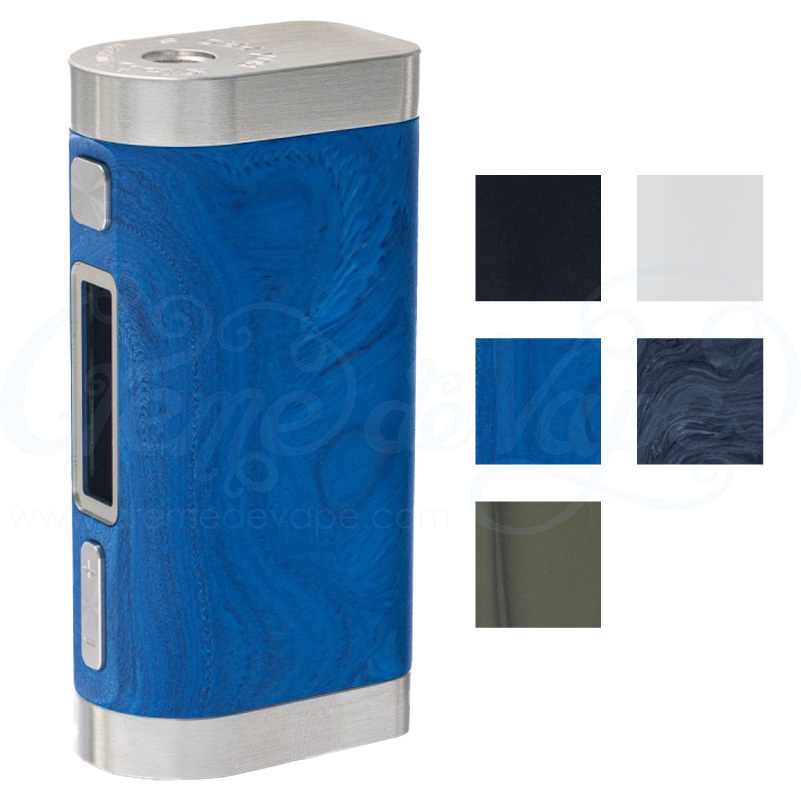

The device’s body is bead-blasted for a beautifully smooth surface finish and is available in a choice of premium materials:

• Certified Delrin (Black)
• PET (Pearl white)
• Juma (Gem black, Gem blue & Woodland green).

All variants feature rounded corners and an integrated display glass for a refined look and feel.

Precision-crafted in Germany with brushed stainless steel and high-quality materials, the Taifun Box Pro S is backed by a two-year warranty from Dicodes, covering manufacturing faults in the electronic components.

Features

• Power range 5-80watts
• Up to 11V output voltage
• 0.91" OLED display with adjustable brightness
• Powered by a single 18650 battery - 30A recommended (sold separately)
• User-friendly menu with configuration wizard
• Spring-loaded copper-beryllium centre pole with 4 contacts for optimal current consumption
• Temperature-controlled vaping with support for Ni, Ti, SS, and other wire types
• Comprehensive safety features: reverse polarity protection, short-circuit, and overload protection
• Resistance range (80W) 0.17 - 1.5Ω
• Battery internal resistance measurement capability
• Customisable settings (e.g. power limits, display options)
• USB-C charging with PD+ support
• High quality materials: brushed stainless steel (1.4301) and, depending on the version, Delrin, PET or Juma
• Made in Germany
• 2-year warranty

Contents

• Taifun Box Pro S device
• User guide

Dimensions (approx)
Width: 23mm
Length: 76mm
Depth: 37mm

Warranty Terms
The two-year warranty covers manufacturing faults within the electronic components of the device only.

Special Notes
Juma is a high-grade, modern resin-based material usually used for the manufacture of handcrafted works of art where fine finish and durability are of paramount importance. Each Juma device is unique due the the natural variation in patterning and grain in this material so the device you receive will vary from those shown in our photos. These natural variations do not constitute defects.

Care & maintenance
The black Delrin model exits the manufacturing process with a matt grey appearance due to the bead blasting. It is then treated with a thin film of oil, using a clean, lint-free wipe to enhance its finish. This may wear off with handling and should be reapplied as necessary. (Ballistol Universal oil, or any natural food-safe silicone-free oil will do the job nicely)..

Although it's a Taifun branded device, it features a Dicodes chip and so you may want to join our dedicated Dicodes Facebook group for support, discussion, and tips..

Important: No tank or atomiser included. To benefit from the temperature limit settings, a coil made from NiFe, SS, titanium, or Ni200 wire is required. Standard Nichrome or Kanthal A1 may only be used in wattage mode and will not allow temperature control. Flat top 18650 battery required.
